Presser Foot In-Between Needles


PF_Off Index.png

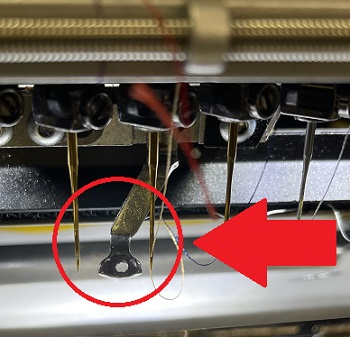

If the presser foot is in-between needles, follow the steps below.


1.  Power Cycle the machine and check for a Z Bind.

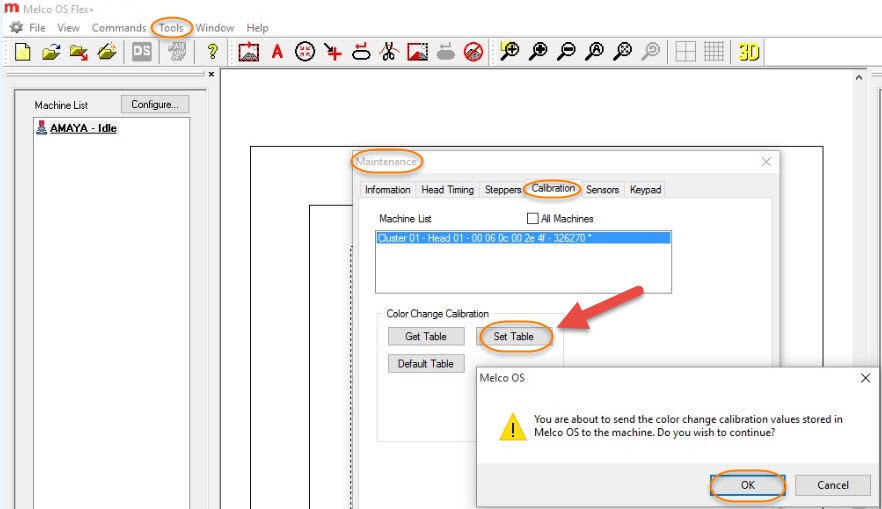

2.  Do Tools > Maintenance > Calibration > Set Table > OK


3.  Verify the Needle Case Calibration. For EMT16Plus and EMT16 or for XTS and XT.

4.  If Needle Case Calibration is correct, you will need to adjust the Presser Foot gap

5.  If the situation remains unresolved, you will need additional technical assistance. Here are the available Melco Technical Support options.

  • Do Tools > Maintenance > Calibration > Default Table > OK > Set Table > OK
  • Go to Tools > Options > Ethernet and check the Force Download > Apply > Ok, then Power Cycle the machine. It might take a few minutes to start.
  • Refresh the Registry.
