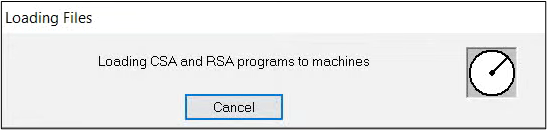

If you are seeing ‘Loading CSA and RSA programs to machine’, wait 30second and observe for the below listed symptoms, follow the appropriate steps if the machine does not detect during that time.
If ‘Cycling’ (If the message flashes more than twice):
- Power Cycle the machine.

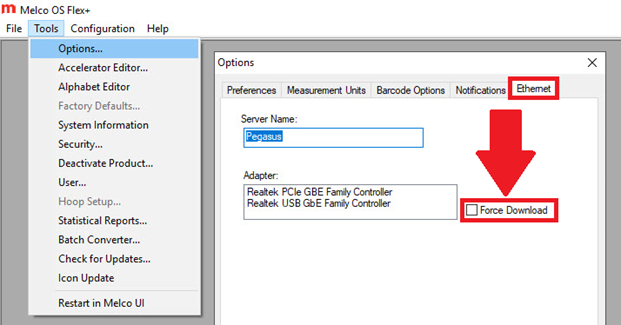

- Power Cycle with Force Download. Go to Tools > Options > Ethernet
4. Push the Reset Button on the Main-PCB.

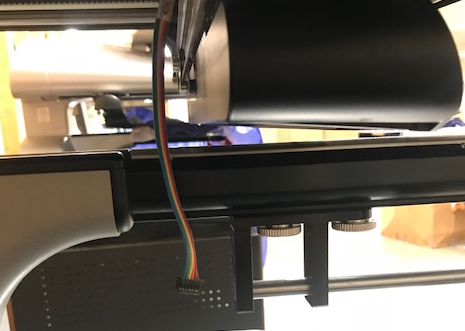

6. Check the rainbow-colored cable - X/Y Home Cable - PN# 30193-04
7. Try a direct connection from the embroidery machine to the computer. Bypass any ethernet hub.
If flashes twice and then ‘Frozen’:
- Wait 30 seconds.
- Power Cycle the machine.
- If you still receive the message and are trying to connect two or more machines, turn all machines off, and Power Cycle one of them.
- Check for a Cluster 1 denied: Unable to find a valid cluster activation error message.
- If the situation remains unresolved, you will need additional technical assistance. Here are the available Melco Technical Support options.
If ‘Flashes twice and then stops’ or the above steps do not work:
If this message flashes twice after you turn on the machine and remains on the gray screen, you will need additional technical assistance. Here are the available Melco Technical Support options. The Main-PCB might need to be refreshed for the correct model of machine. As a workaround you might be able to run with Lite if Flex is not detecting.
- Power Cycle the machine twice, once with Force Download checked and then with Force Download unchecked.
- Wait with the machine Powered On and connected to the computer. In extreme scenarios the machine may need to remain on for up to 24 hours.
