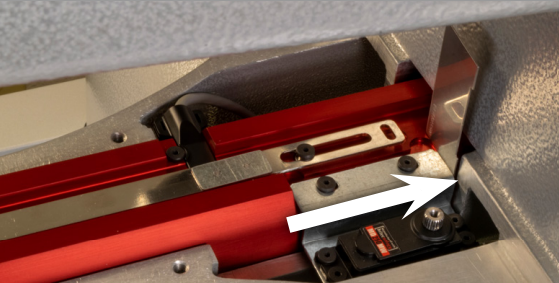

The NPT Motor Assembly PN 35277 to Machined Lower Arm PN 34353 Gap should be 0.5mm you can test the gap using the Retaining Finger Gauge. If the gap is too large or tight you can adjust it with the two Low Head Screws PN: 35129.
