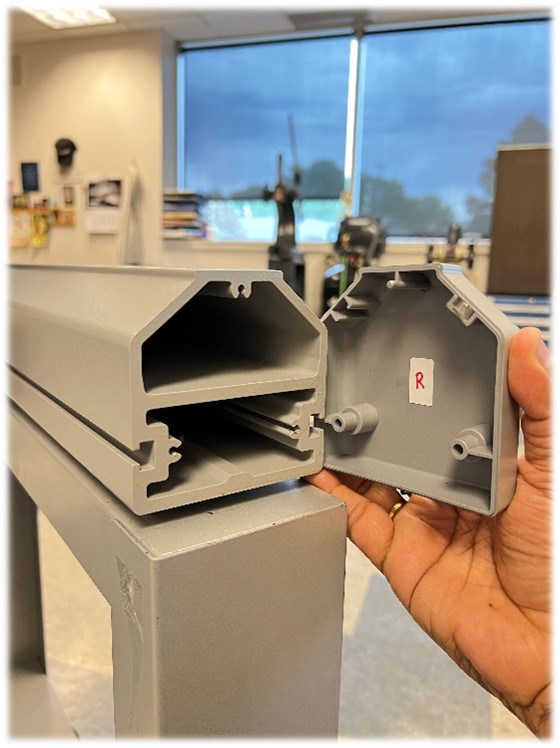

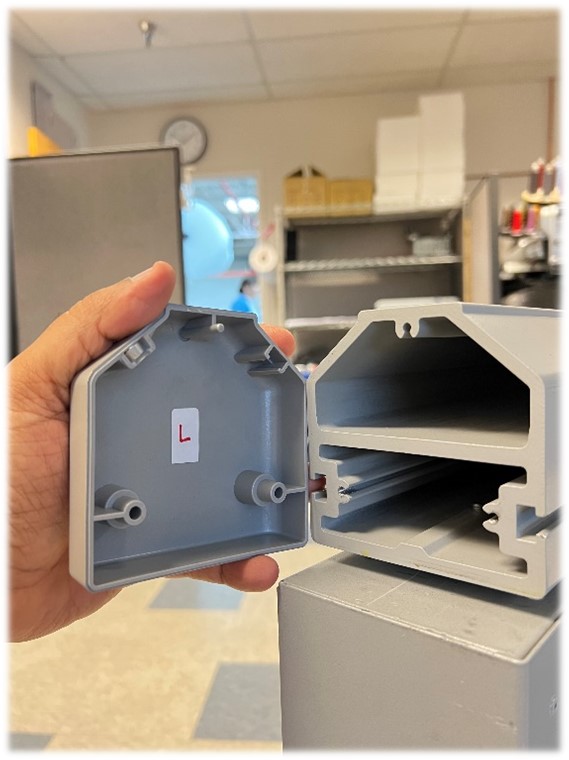

Extrusion cover marked as “L” goes on the left machine base extrusion. “R” goes on right base extrusion as shown in the picture below:
Align extrusion covers with extrusion as shown below:

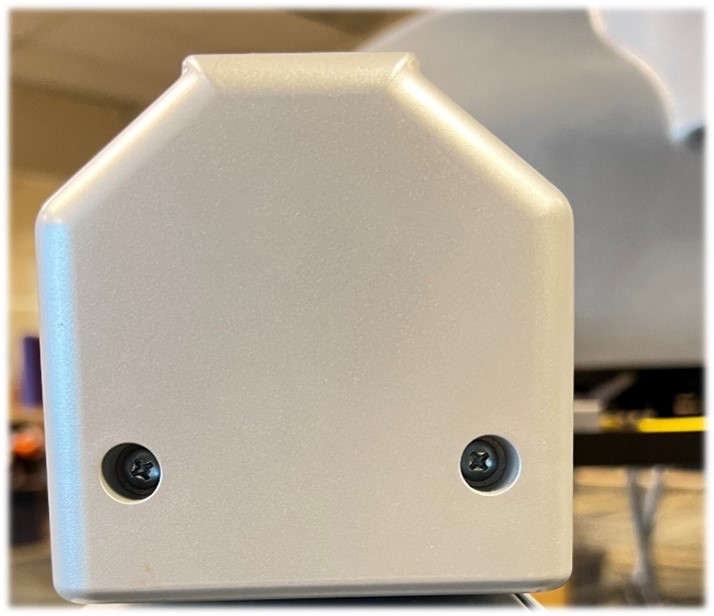

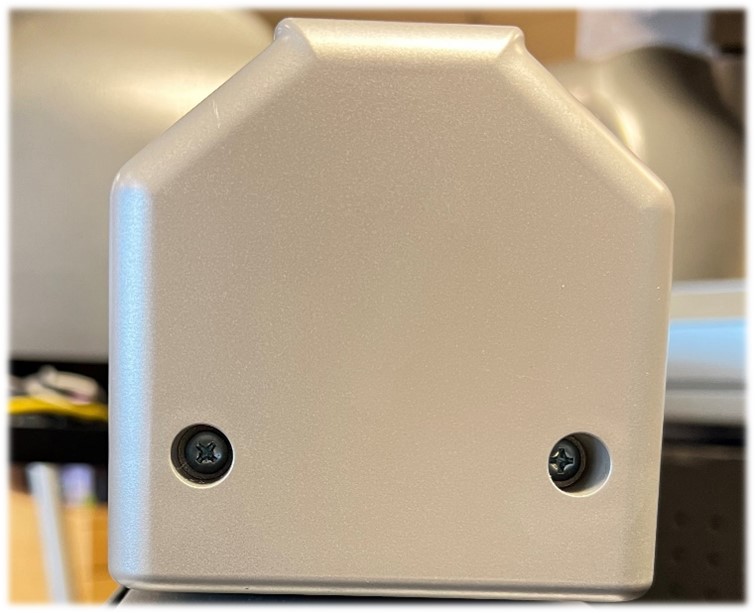

Once covers are aligned & placed on the extrusion, secure it with the 4 screws.
