Installing the Red Wide Angle Cap Driver Mounting Assembly

These pictures below depict the correct and incorrect installation of the Mounting Assembly for the Red Wide-Angle Cap Driver to Melco Embroidery Machines (AMAYA and Newer Machines)   For complete WACF Installation, review these instructions.

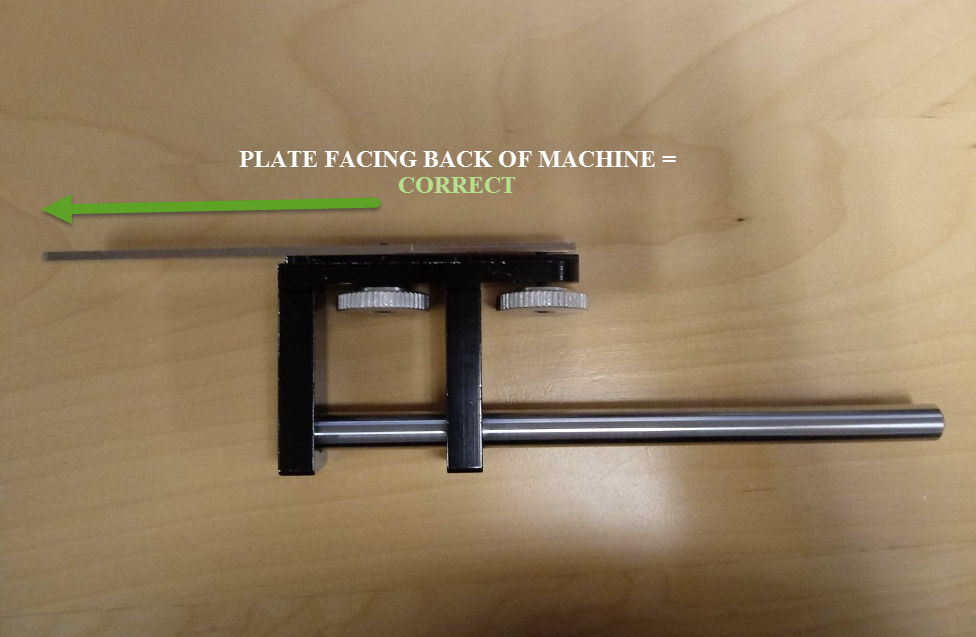

CORRECT METHOD

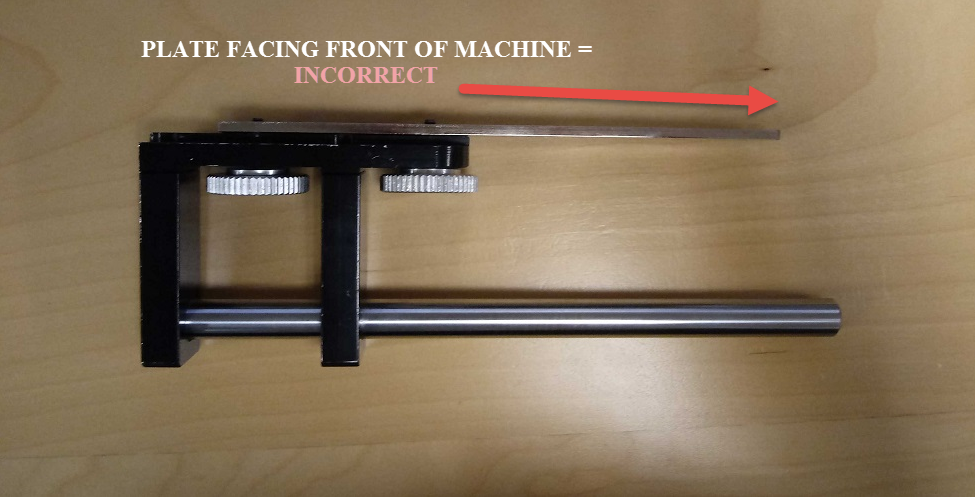

INCORRECT METHOD
