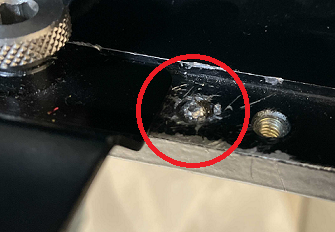

Broken Hoop Arm Screw - PN#12392-01

Hoop Arm Screws are designed to break instead of causing severe damage to the machine itself.



Obtaining Additional Screws:

One additional screw is provided in the Operator's Kit with each new machine.

Replacement screws are available through the ShopMelco.com site:

The part can be found here in the Parts Manual.



Extracting Broken Screw:

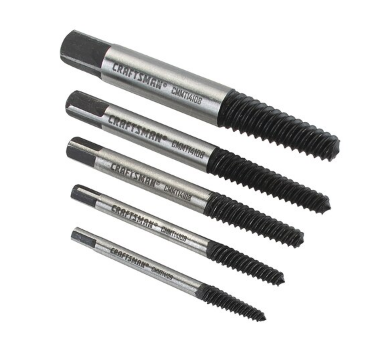

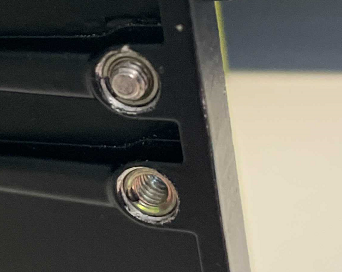

If enough of the screw is exposed on the top or underside of the carriage, a pair of vice grips might work.  Otherwise, you would need something like this:

http://www.craftsman.com/shc/s/p_10155_12602_00966196000P?sid=IDxCMDFx20140801x001&KPID=00966196000&kpid=00966196000
