Damaged Upper Arm Front Cover

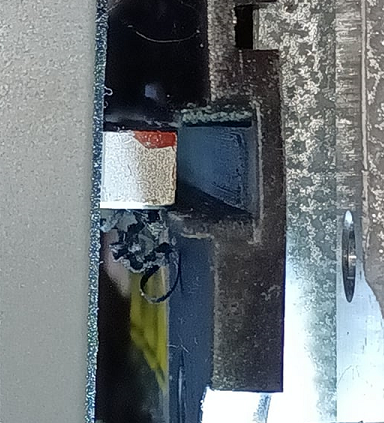

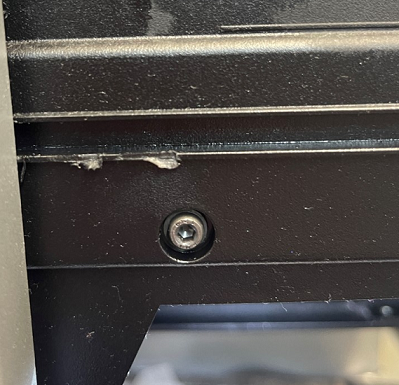

Damage to the Upper Arm Front Covers  (Left PN: 32865 and Right PN: 32859) could cause Color Change Binding. This damage would typically happen if a Drive Stud has dug into the plastic after a Clamp Hit or Hoop Spike. After any Binding issues have been fixed, the covers can be replaced by color changing to needle #1 or #16. If both covers are being replaced, fully reinstall the new cover before color changing to install the other side.

CAUTION!! If your machine color changes without the Upper Arm Front Covers, damage to your machine will occur and a service call will be necessary, Melco will not be responsible for any damage to the machine or related service costs caused by not performing this step.
