The SUMMIT Upgrade Kit (PN# 36518) is available exclusively for EMT16X.
The EMT16X must be in working order prior to the upgrade. Non-functioning machines are not eligible for the upgrade.
• 6 Month Warranty on SUMMIT Upgrade Kit Parts and Installation/Labor
• All other parts of the machine adhere to the original warranty period (including machines already under Extended Warranty.)

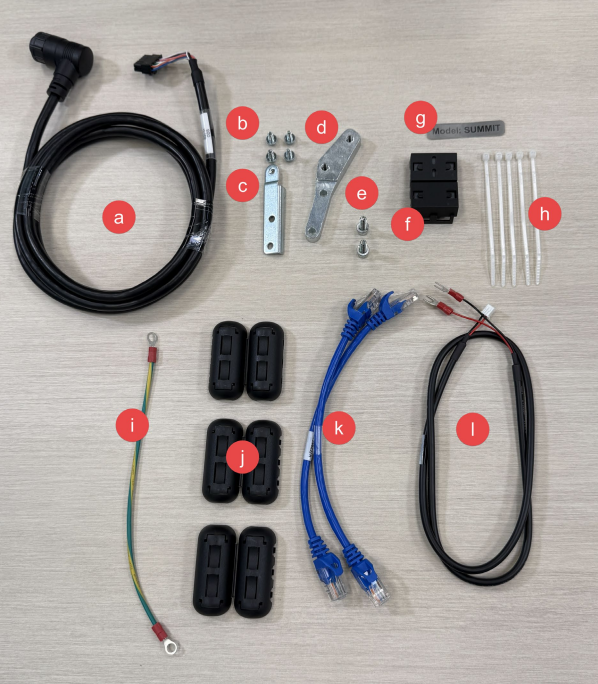

The SUMMIT Upgrade Kit comes with three boxes of components:
1. Touchscreen Interface Assembly
2. SUMMIT Converter Board
3. SUMMIT Upgrade Parts:
a. Communication Cable
b. M4 x 6mm Small Screws (x4)
c. SUMMIT Converter board mounting bracket
d. Touchscreen Machine Adapter Plate
e. M5 x 16mm Screws with washers (x2)
f. Block Ferrite (x1)
g. SUMMIT Label
h. Zip Ties (x5)
i. Extra grounding cable
j. Cylinder Ferrites (x3)
k. Small Ethernet Cables (x2)
l. SUMMIT Converter Board Power Cable
