Mighty Hoop 4.25" x 13" Bracket Mounting Instructions for Melco Machines

4.25” x 13” Offset Hoop  Bracket Mounting Instructions

There are 4 separate locations to mount the brackets on the 4.25” x 13” Mighty Hoop.  Use Position D (see Figure 2 below) for Melco Machines.

Before you mount the brackets orient your 4.25” x 13” Mighty Hoop as shown in Figure 2 below.

Align the bottom hole of the bracket with hole D on the hoop for 1-1/2” offset spacing.
This brings the hoop towards the front of the machine so that it does not hit the back of the machine.


Figure 1 - Correct Location to Attach Brackets

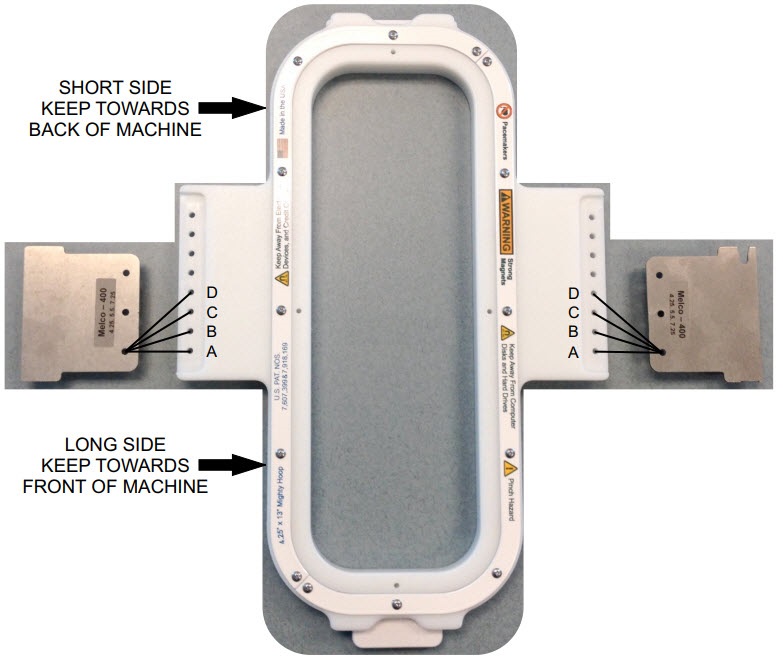

Figure 2 - Correct Hoop Orientation
