Melco Cap Guard Installation Instructions


The Melco Cap Guard Kit - PN# 35627 is available on ShopMelco or through Melco Customer Care at 800.799.8313.

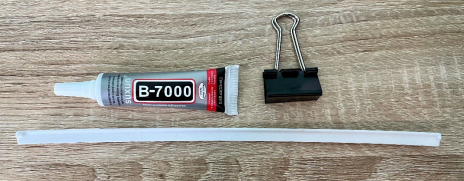

Included in the kit are the following:

  • 1 Cap Guard - PN# 35624
  • 1 Bottle of Adhesive - PN# 35629
  • 1 Clip - PN# 35628


Installation Instructions:

1.  Lay out contents of kit.


2.  Turn on machine. Move to needle 3 and set Grabber Out.


3. Apply a thin layer of adhesive to the back of the Cap Guard.


4. Attach Cap Guard on trap sliding the left side in and then making sure the right
side of the guard snaps in firmly.


5. Use the included Clip to secure the Cap Guard in the middle of the thread trap.


6. Let the adhesive rest for 10 minutes.

7. Remove the Clip.

8. Cap Guard has been successfully installed. If for any reason the guard becomes loose, please repeat the process.
