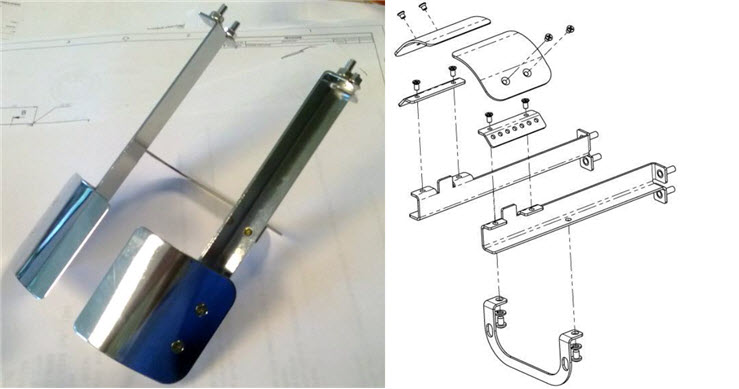

Remove Cap Support Wings on Red Wide Angle Cap Driver

The cap support wings of the wide angle driver will need to be removed to use the driver with the Conventional Cap Frame (CCF) or any of the Micro Clamps. They may also need to be removed for any design that pushes the physical limit of any specific cap style or a smaller cap.  Complete instructions are provided here in the Melco OS Manual.
